JACKS & PLUGS
Jack Series
Thick Panel/Guitar, Locking 1/4", Tini, Tini-Extension, Micro, 3.5mm

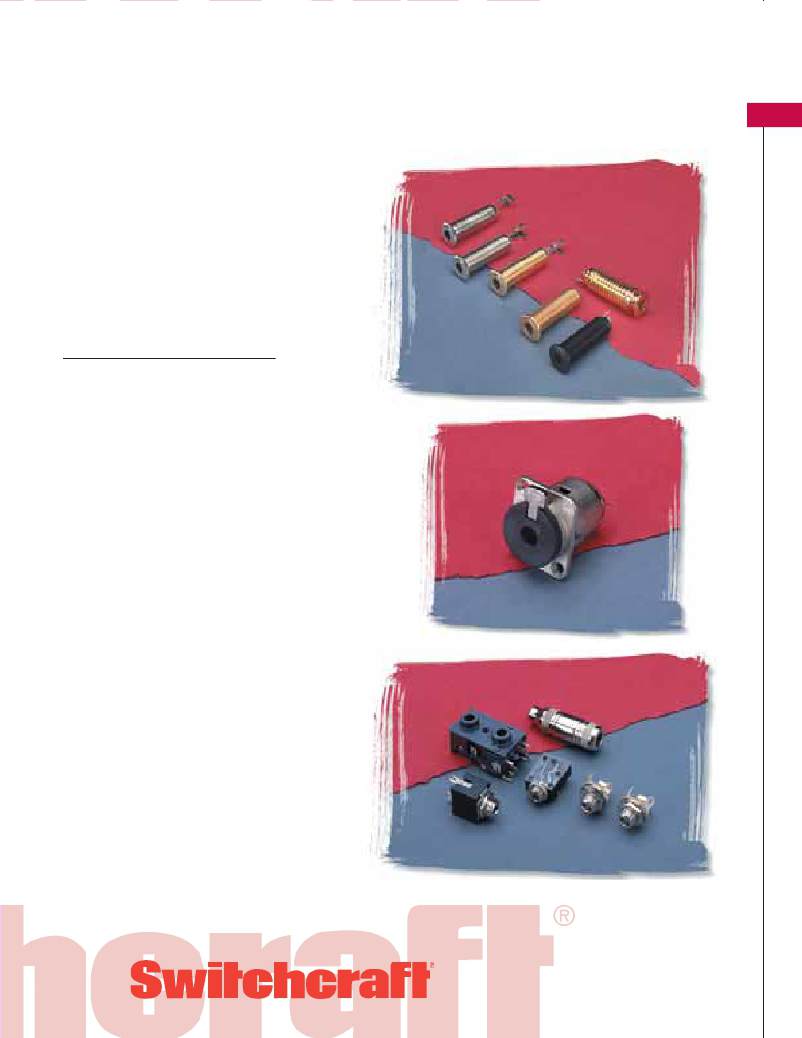

The TP or Thick Panel jacks are typical-
ly used in applications such as loud-
67
speaker enclosures and solid-body
152B
guitars. Only premium materials are
used in the manufacture of these jacks.
Locking 1/4" jacks allow the end user
to lock the mating plug, providing
positive detent to the connection.
Also offered is a wide range of 1/8"
jacks and true 3.5mm jacks.
Specifications - Thick Panel Series
& Locking Jacks
Electrical
Insulation Resistance: 2 x 106 MW
at 500 VDC per Mil-Std-202,
method 302 (initial)
Dielectric Withstanding Voltage:
1,000 VAC (ms)
Life: 10,000 cycles minimum
Environmental
Thermal Range: -55?C to +85?C
(non operating); -20?C to +65?C
(operating)
Thermal Shock: Per Mil-Std-202,
method 107
Humidity: Per Mil-Std-202, method
106
Salt Spray: Per Mil-Std-202, method
101
Materials
Shell - Locking Jacks: Die-cast
zinc, with satin nickel-plating;
151
154
152
155
E111L
153
Black chrome over nickel-plating
on special order
Insert and Latch: Thermoplastic,
UL94V-0
Latch Release: Nickel-plated
die-cast zinc
Contact Springs: Tin-plated
copper alloy
Mounting Bushing - Thick Panel
Jacks: Nickel-plated copper alloy
with knurled flange
142A
35RAPC7J
35RAPC2BH3
125
42A
35PM2A
Insulating Spacer: Rigid plastic
(continued on next page)
5555 North Elston Avenue / Chicago, IL 60630
Phone: 773-792-2700 / Fax: 773-792-2129
